Single Sphere Rubber Expansion Joint

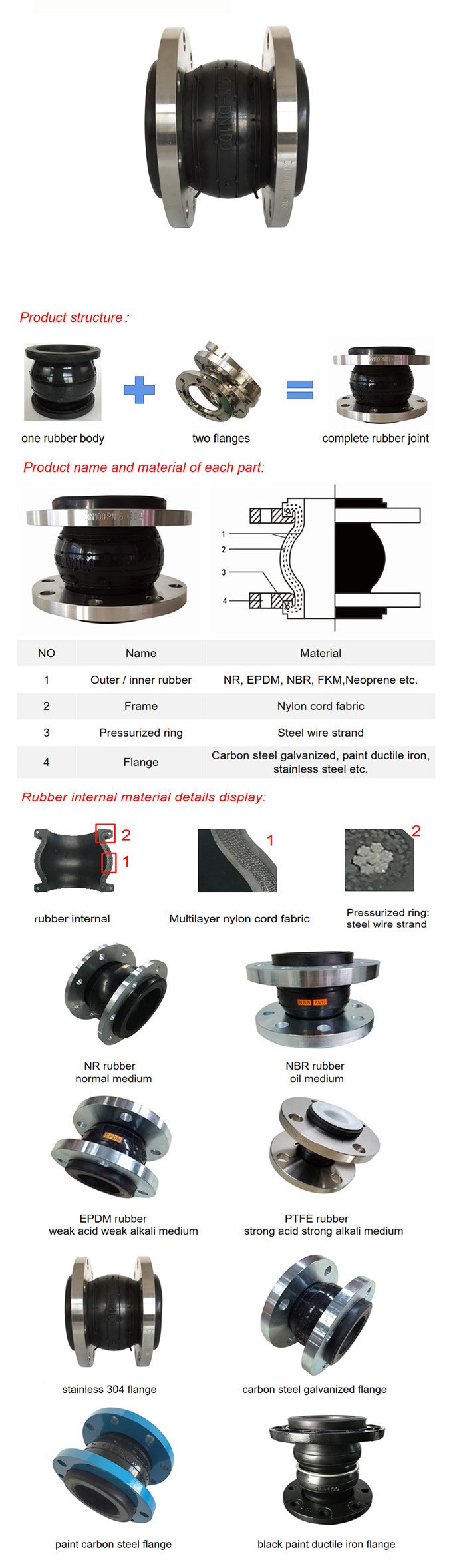

Single sphere rubber expansion joint is composed of rubber body and flange. The material of rubber is usually NR / NBR / EPDM / PTFE, etc, different rubber materials are suitable for different media,such as EPDM rubber is suitable for weak acid and weak alkali. The material of flange could be carbon steel galvanized, paint ductile iron, stainless steel 304 / 316,etc.

Collect
Product No. 1001
Product Description

EPDM NR NBR rubber DIN ANIS carbon steel flange type single sphere rubber expansion joint



Single sphere rubber expansion joint is composed of rubber body and flange. The material of rubber is usually NR / NBR / EPDM / PTFE, etc, different rubber materials are suitable for different media,such as EPDM rubber is suitable for weak acid and weak alkali. The material of flange could be carbon steel galvanized, paint ductile iron, stainless steel 304 / 316,etc.

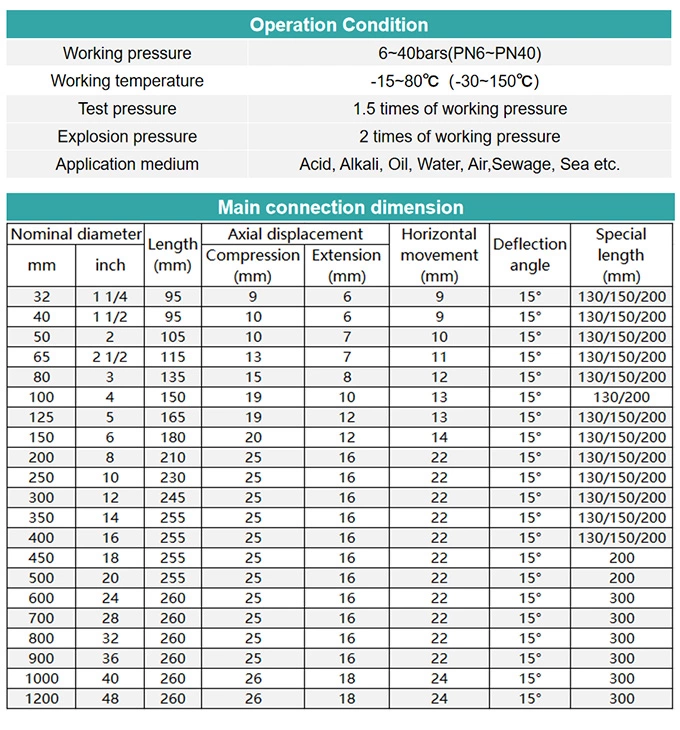

Use parameters
Pressure30 bar / 3.0 MPa
Temperature-30 ℃ ~ 150 ℃
LenghtCustomized
MediaWater, Air, Oil, Weak acid and weak base
Size1'' ~ 10''; customized
ConnectionFlange
Rubber materialEPDM, NR, NBR, PTFE
Flange materialSS304 / Carbon steel
StandardDIN, ANSI, JIS
Product nameRubber expansion joint
