Stainless Steel Y Type FilterY-type filter is an indispensable filter device in the pipeline system for conveying medium. Y-type filter is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to remove impurities in the medium. , to protect the normal use of valves and equipment.
Collect
Product No. 1069
Product Description

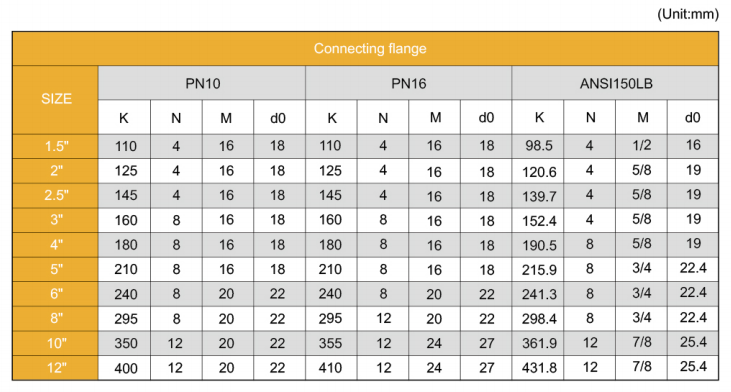

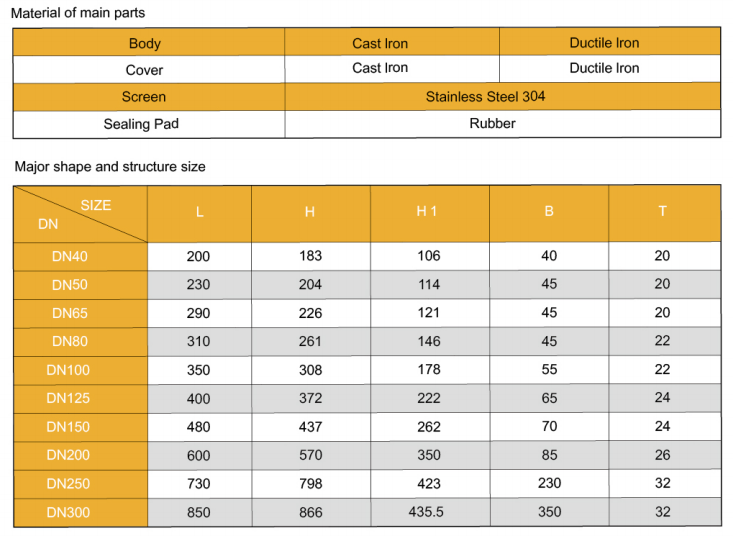

【Surface Treatment】: Stainless steel 【Connection way】: Flange connection 【Product material】: stainless steel 301/304/316 【Applicable medium】water, oil, cosmetics cream,lotion,food,beverages, dairy products, etc. The weight and sizes are for reference,the final is according to different model,thanks. 1.Product features: beautiful appearance, smooth surface, acid and alkali resistance, anti-corrosion, strong texture performance 2.Product use: The inside and outside of the product are treated with high-end polishing equipment to meet the surface precision requirements; this product is suitable for stainless steel piping systems in the industrial fields of dairy, food, beer, beverage, pharmacy, cosmetics, etc. TECHNICAL REQUIREMENT : Face to Face dimensions Conform to EN558-1 list 1 Flange dimensions Conform to EN1092-2 PN16 Testing Conform to EN12266-1 Note: 1.DN50~DN300 meshes Φ1.5 DN350~DN600 meshes Φ3.0 2.It can be manufactured according to customer’s requirement 3.DN450~DN600 Body and bonnet’s materials are EN-GJS-450-10
|
